Servo Control Wire EDM BM200x120F

Servo Control Wire EDM BM200x120F

Model No.︰BM200x120

Brand Name︰SUZHOU BAOMA

Country of Origin︰China

Unit Price︰-

Minimum Order︰1 pc

Inquire Now

Product Description



 MACHINE MODEL

    ITEM D F I

    Max. Cutting Thickness(mm) 500 500 1000

    Max. Cuttting Taper(<=100mm thick) ±3° ±30° ±3°


 SPECIFICATIONS

    PARAMETERS BM100x80D BM100x80F BM100x80I
    Table Travel (mm) 800 x 1000
    Table Size (mm) 820 x 1400
    Roughness   Once Cutting (um) <= 2.5
  Multi-Cutting (um) <=1.2
    Precision   Octagon (mm) <= 0.012 <= 0.012 <= 0.012
  Taper (mm) <= 0.04 <= 0.1 <= 0.04
    Screw and guide way High Quality Ball Screw  ;  Steel Linear guideway
    Load of Table (Kg) 5000
    Machine Weight (Kg) 6700


 UNIVERSAL PARAMETERS

n  Max. Cutting Speed 150 mm2/Min.
n  Wire Speed 5 - 11 m/Min
n  Max. working Current 6 A
n  Wire Diameter Dia. 0.15-0.2mm
n  Work Solution BM2/BM4 Water Base Working solution
n  Water Tank 56 L
n  Rated Voltage AC~,3N, 220-415V,50/60HZ
n  Ratde Power 3 KVA
n  Wire Guide Frame Adjustable
n  Controller BMW-3000


Price Terms︰ FOB Shanghai

Payment Terms︰ TT/LC

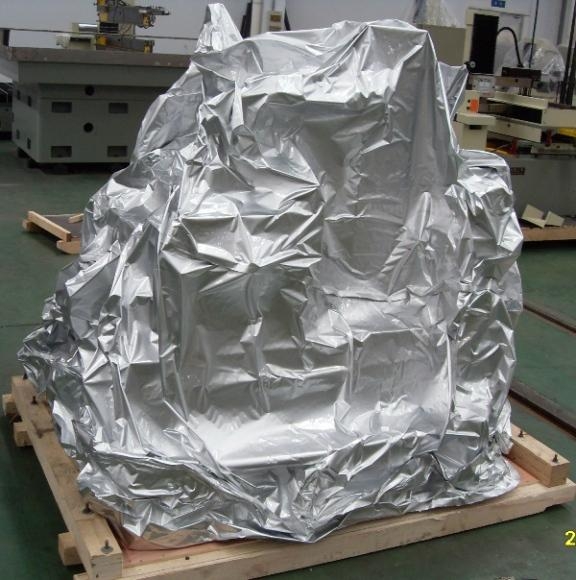

Packing︰ 3 plywood case/unit

Lead Time︰ 25days

Standards Certificate︰ CE; ISO9001; IS014001; GB7629-87

Control System︰ Controller: BMW3000
Software: BMXP
Platform: Windows + AutoCAD

Product Image
