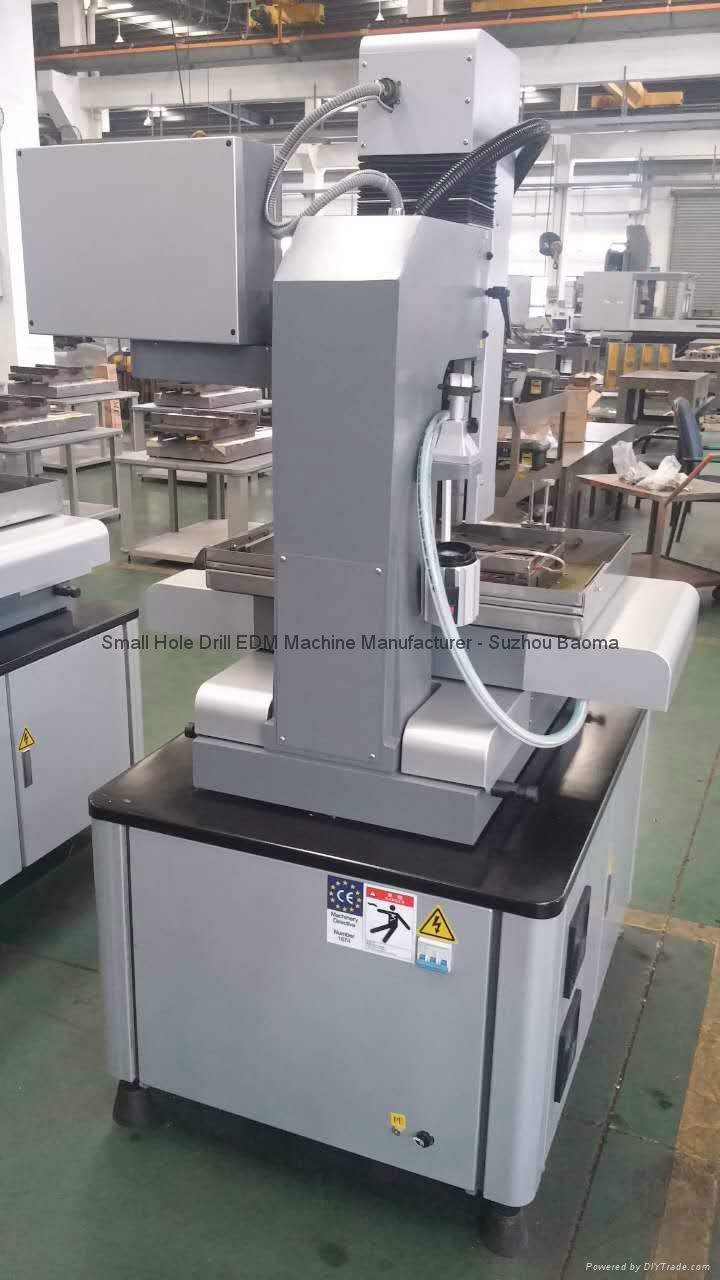

High Speed Small Hole EDM DB703A
| Parameters |
BMD703 |
| Worktable size(L×W) |
mm |
436x316 |
| Table travel(X×Y) |
mm |
400x300 |
| Z axis travel |
mm |
270+(300) |
| Max. drilling depth |
mm |
0 -- 270 |
| Max. Drilling Speed |
mm/min |
60 |
| Max. working current |
A |
30 |
| Drill Diameter |
mm |
0.3 -- 3.0 |
| Load of table |
Kg |
300 |
| Working solution |
|
Water/Saponification |
| Water Tank |
L |
25 |
| Voltage |
|
380V AC/50 Hz or 415V AC/50 Hz |
| Max. Power |
KVA |
3.5 |
| Machine Dimension (LxWxH) |
mm |
1060×750×1700 |
| Packing Size (LxWxH) |
mm |
1300x1040x2030 |
| Machine Weight |
Kg |
600 |
| Z Axis Controller type |
|
Electric Motor |
| Digital Display |
|
X,Y,Z axis |
| Function of setting depth |
|
Yes |
| Price Terms: |
FOB Shanghai |
| Payment Terms: |
T/T or L/C at sight |
| Packing: |
1 Case/Unit |
| Lead Time: |
25days |
| Standards Certificate: |
CE; ISO9001; ISO14001 |
| Embed HTML Code: |
|
Item
|
DB703A
|
|
Worktable size(L×W)mm
|
436×316
|
|
Table travel(X×Y)mm
|
400×300
|
|
Z axis travel mm
|
270+(300)
|
|
Max. drilling depth mm
|
0-270
|
|
Max. drilling speed mm2/min
|
60
|
|
Max re-track speed of spindle mm/min
|
320
|
|
Max. working current A
|
30
|
|
Electrode diameter
|
0.3-3.0
|
|
Load of table kg
|
300
|
|
Working solution
|
Water/Saponification
|
|
Working reservoir capacity L
|
25
|
|
Power supply
|
380V AC/50 Hz or 415V AC/50 Hz
|
|
Max. Power consumption KVA
|
3.5
|
|
Machine dimension mm
|
1060×750mm×1700
|
|
Package dimension mm
|
1300×1040×2030
|
|
Machine weight kg
|
600
|
|
Controller type
|
Automatic Z axis
|
|
Digital Display
|
X,Y,Z axis
|
|
Function of setting depth
|
yes
|
|
Function of group drilling
|
yes
|
The processing data in common use: This section is some technologic data according to technics experiments of normal prototype machines and technologic results. In particular process, Users can choose different parameter according to different orders to gain the process result which user wants. Conditions: Electrode: brass power net: 380AC
| parameters material aperture |
Ton(1) |
Toff (2) |
Ip (3) |
Kc(12) |
pressure(Mpa) |
processingvoltage (V) |
Rotation |
processingcurrent (A) |
| 0.3 |
45# |
2 |
1 |
2 |
0 |
5-6 |
25 |
Y |
3 |
| 0.3 |
chilled steel |
2 |
1 |
2 |
0 |
5-6 |
25 |
Y |
3 |
| 0.3 |
stainless steel |
2 |
2 |
2 |
0 |
5-6 |
25 |
Y |
3 |
| 0.5 |
45# |
3 |
2 |
3 |
0 |
6 |
25 |
Y |
5 |
| 0.5 |
chilled steel |
3 |
2 |
3 |
0 |
6 |
25 |
Y |
5 |
| 0.5 |
stainless steel |
3 |
2 |
2 |
0 |
6 |
25 |
Y |
4 |
| 1.0 |
45# |
3 |
2 |
5 |
- |
6 |
20 |
Y |
12 |
| 1.0 |
chilled steel |
3 |
2 |
6 |
- |
6 |
20 |
Y |
12 |
| 1.0 |
stainless steel |
3 |
2 |
4 |
- |
6 |
20 |
Y |
10 |
| 2.0 |
45# |
4-6 |
2 |
6 |
= |
6 |
20 |
Y |
18 |
| 2.0 |
chilled steel |
4-6 |
2 |
6 |
= |
6 |
20 |
Y |
18 |
| 2.0 |
stainless steel |
5 |
2 |
6 |
= |
6 |
20 |
Y |
16 |
| 3.0 |
45# |
5-7 |
2 |
8 |
= |
6 |
20 |
Y |
25 |
| 3.0 |
chilled steel |
5-7 |
2 |
8 |
= |
6 |
20 |
Y |
25 |
| 3.0 |
stainless steel |
7 |
2 |
7 |
= |
6 |
20 |
Y |
23 |
|
| Control System: |
ZNC |
| |
|
